RAM Diamond Ball Base

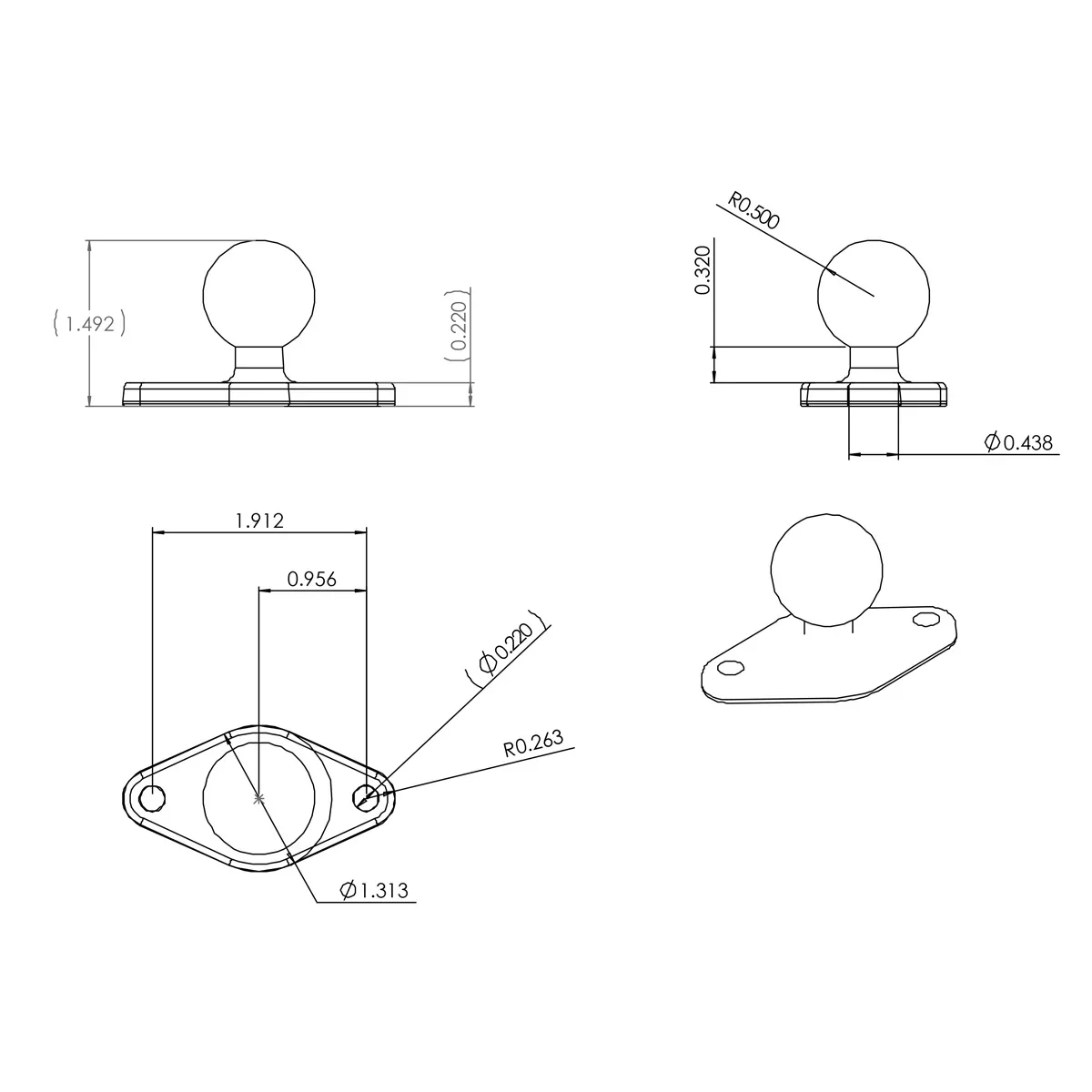

The RAM Diamond Ball Base consists of either a 1" B-Size rubber ball or C-Size 1.5" connected to a 2.43" x 1.31" diamond plate. This mounting component includes pre-drilled holes using the universal AMPS hole pattern.

The diamond plate features two holes that measure 1.912" from center to center, matching the industry-standard AMPS hole pattern. This diamond ball base is compatible with a wide variety of RAM^® device holders and cradles.

Features:

• Diamond plate features industry-standard AMPS hole pattern and measures 2.43" x 1.31"

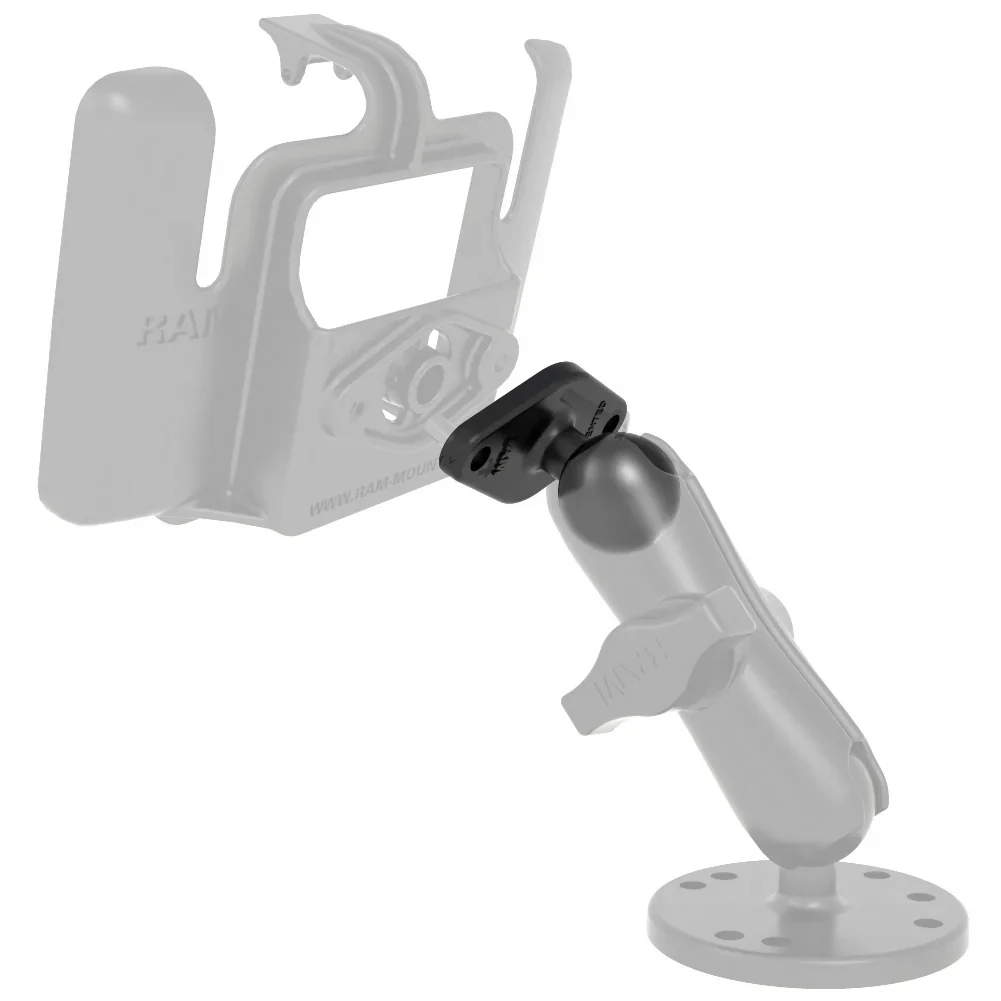

• Compatible with several RAM^® device holders and cradles; ball and socket technology allows for near-infinite adjustability
• For B-Size ball mounts, connect to B-Size socket arms
• For C-Size ball mounts, connect to C-Size socket arms
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

Specifications:

• Hole Pattern: 2-Hole AMPS - 1.912"
• Plate Size: 2.43" x 1.31"
• Ball Size: B Size (1") or C Size (1.5")

• Standard Use: Weight Capacity - 2 lbs
• Heavy-Duty Use: Weight Capacity - 1 lb
